Foaming film | Plastic sheet |
![]() |
![]() |
Stretching film | Plastic bag |
![]() |
![]() |
Stretching film | garbage bag |
![]() |
![]() |

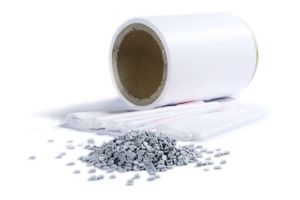

cover of swimming pool | PE / PP film roll |
![]() |
![]() |

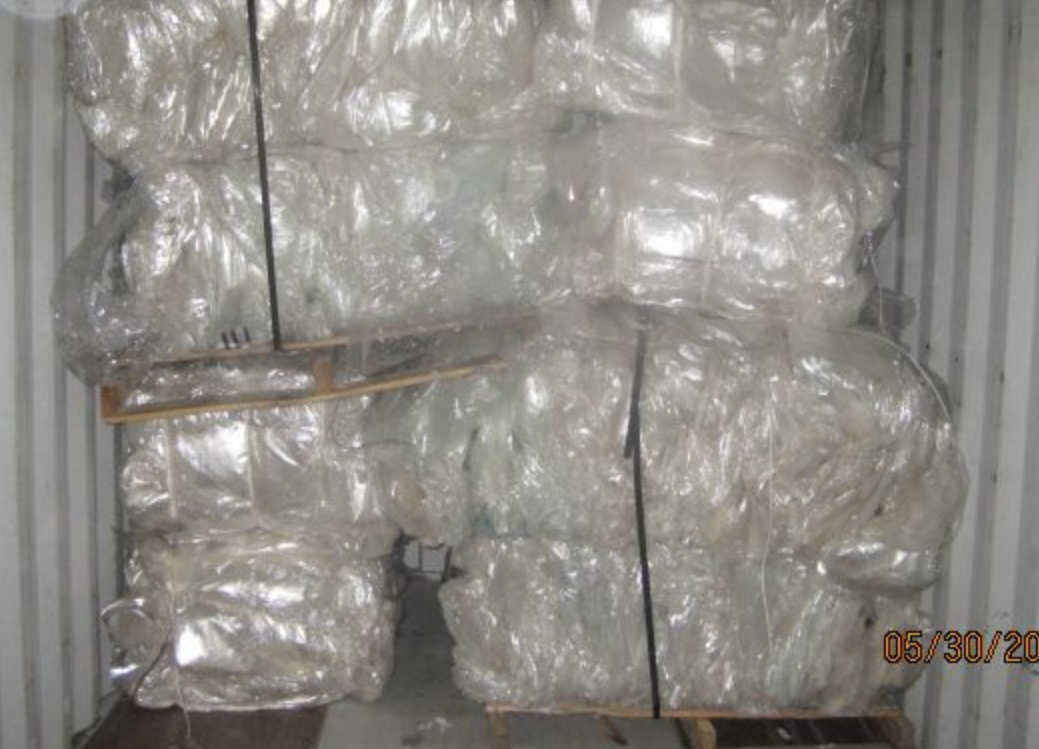

Plastic bag | Abandoned film |
Model | PTCS80 | PTCS100 | PTCS130 | PTCS150 | PTCS185 |
diameter | 80 | 100 | 130 | 150 | 185 |
(mm) | |||||
l/d | 18-42 | ||||
Speed | 10-150 | ||||
(rpm) | |||||
Output | 150-250 | 200-350 | 450-600 | 600-700 | 800-1200 |
(kg/hr) |

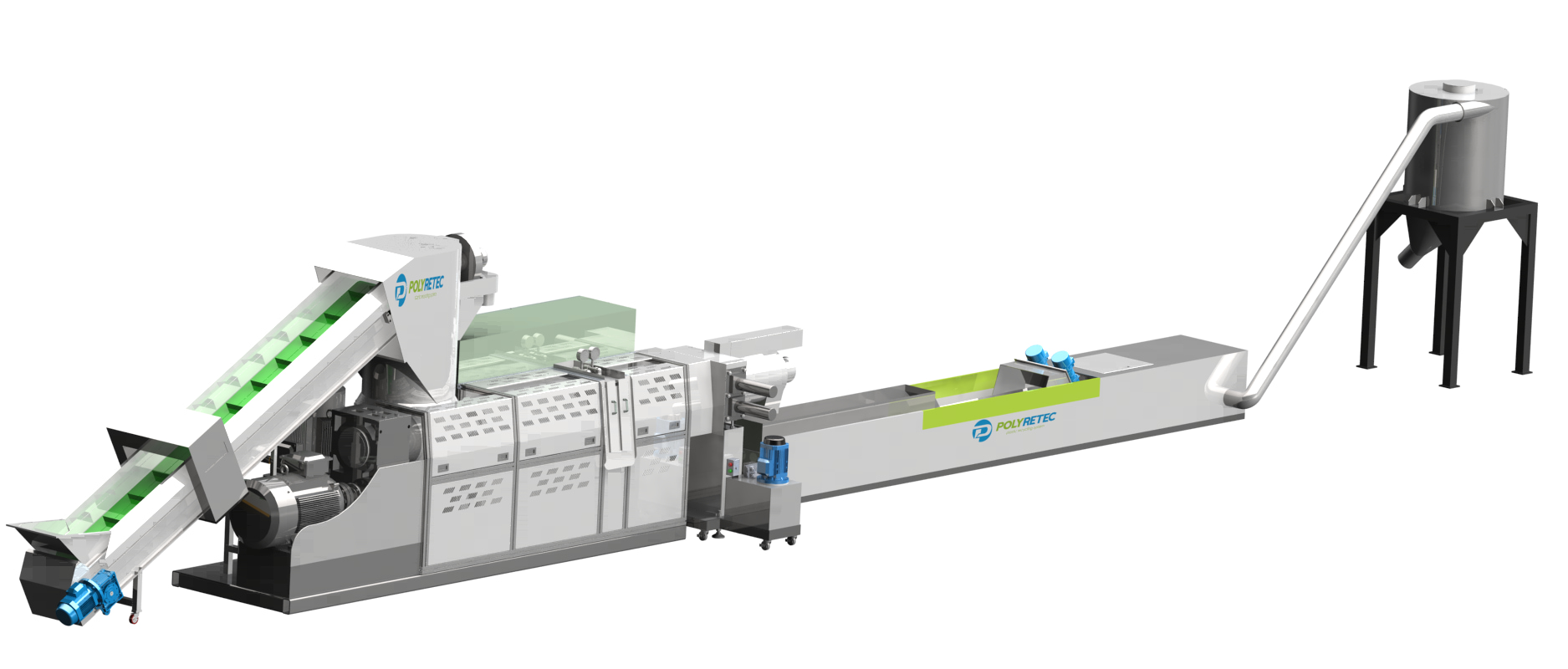

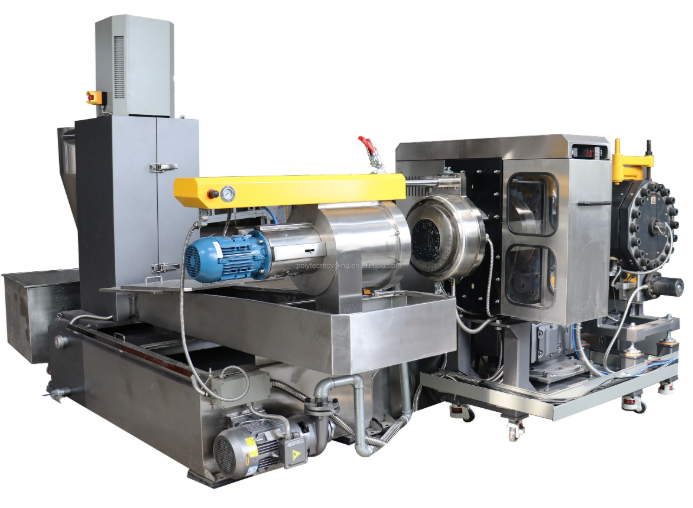

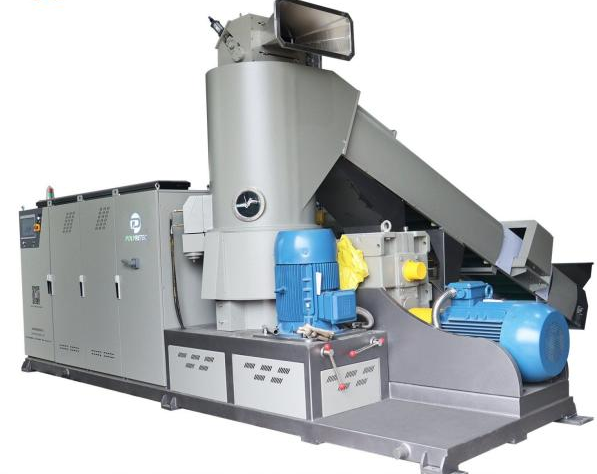

Model | PTCS Three-in-one plastic recycling machine |

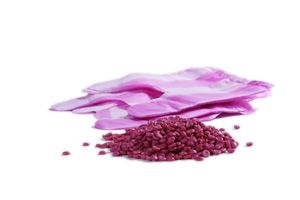

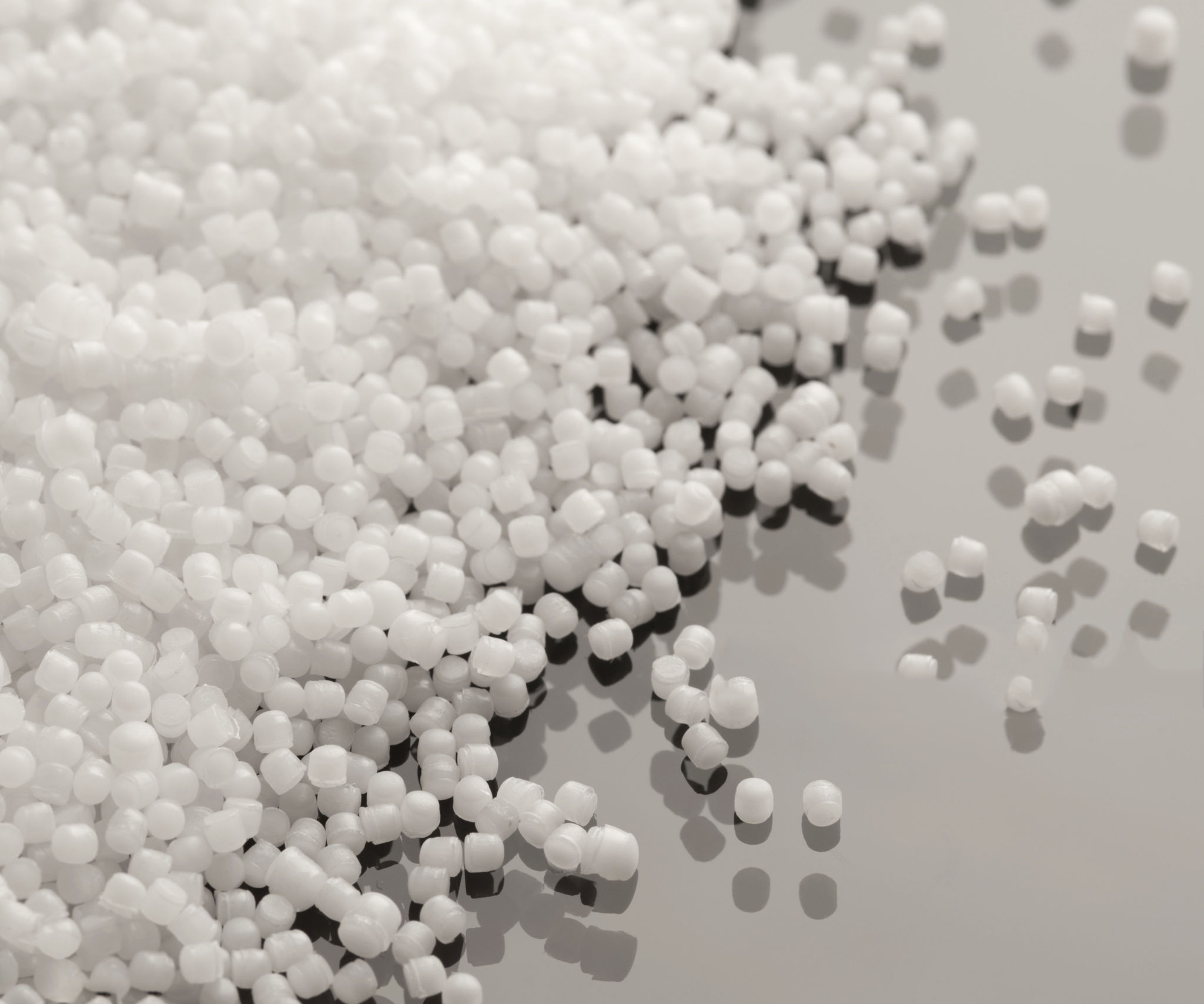

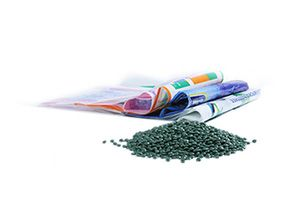

Final product | Plastic granules |
Structure | Conveyor belt, agglomerator, extruder, pelletizing unit, water cooling unit, drying unit and storage silo, degassing unit, filtration unit |
Raw materials | HDPE, LDPE, LLDPE, PP, BOPP, CPP, OPP, PA, PC, PS, PU, EPS |
Output | 100kg~ 1200kg/hr |

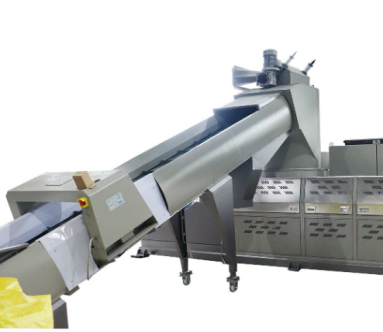

Fending system | Conveyor belt, Traction device (optional) |
Screw diameter | 65~180mm(customized) |
L/D | 30/1, 32/1, 34/1, 36/1 (customized) |
Screw material | 38CrMoAl or double alloy |
Degassing hole | Double degassing hole, single degassing hole or no degassing hole (customized) |

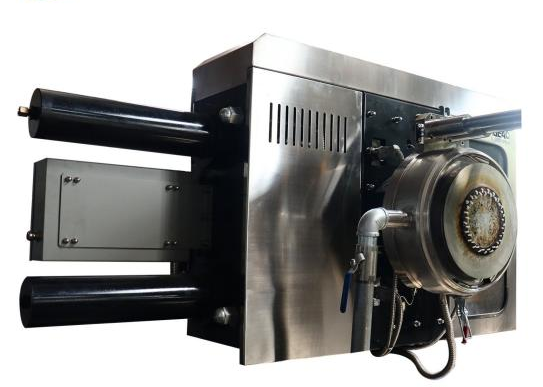

filtering system | Double piston filter |

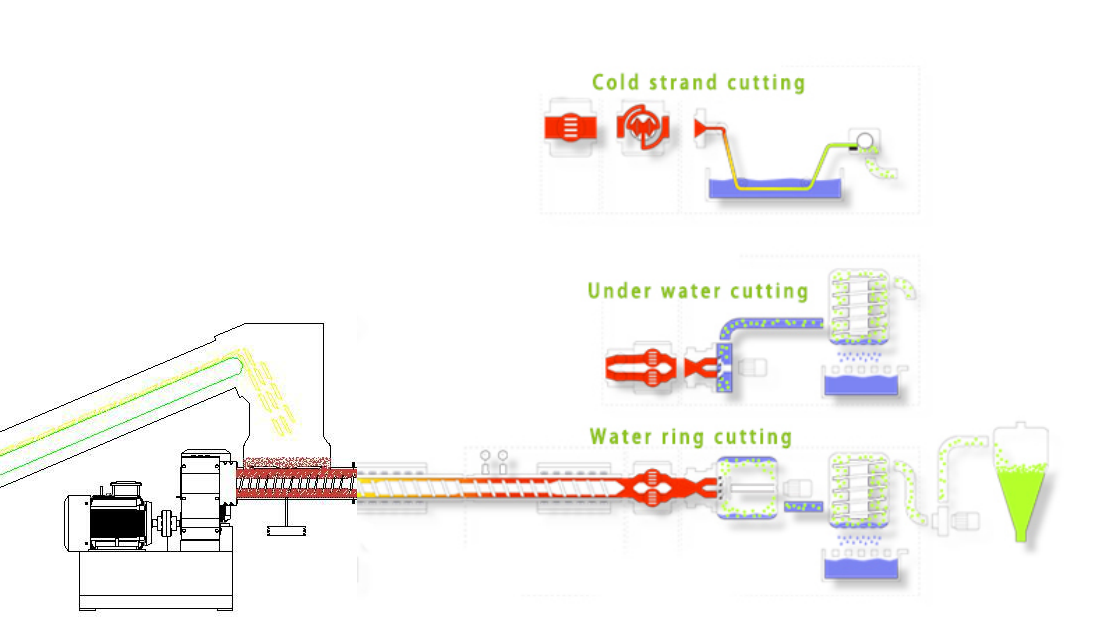

Granulation method | water ring die face cutting |
Cooling method | Water cooling |
Voltage | Customized (Example: America 480V 60Hz, Mexico 440V / 220V 60HZ, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz) |
Optional accessories | Metal detector (S+S Germany) , clamp group, color master batch and additive meter, centrifugal dewatering machine |
Delivery day | Customized machine needs 50 ~ 70 days. |
Warranty | One year |
After-sales service | Engineers available to service machinery overseas |
